L2X pince mere + R1/4-3/8-1/2-5/8"+2batt - 253586 - VIRAX

The VIRAX VIPER® L2X ref. 253586 is a 20 kN, 18 V electromechanical press fitting machine with an inline design for working in hard-to-reach areas. It is supplied with a master jaw, R-profile inserts in 1/4", 3/8", 1/2" and 5/8", 2 x 18 V - 2.0 Ah batteries and a fast charger.

#, ## 2309.40 €
Tax included
Livraison gratuite !
P1002145P
VIRAX

VIRAX VIPER® L2X 253586 press fitting machine - R profile

The VIRAX VIPER® L2X ref. 253586 is a battery-powered electromechanical press fitting machine delivering 20 kN of force. Its inline design is particularly suited to hard-to-reach areas, while its 2.1 kg weight with battery and compact dimensions make it easier to handle.

This configuration includes a master jaw with R-profile inserts in 1/4", 3/8", 1/2" and 5/8". The master jaw and insert system provides a compact, lightweight solution that is easy to store and transport.

Intelligent and controlled press fitting

  • Pressing force: 20 kN
  • Piston return: automatic
  • Force control: automatically monitored by a microprocessor throughout the press cycle
  • Multicolour LED ring: indicates cycle completion, battery charge and preventive maintenance
  • Preventive maintenance: indication at 20,000 cycles
  • Battery safety: the cycle only starts when the battery has sufficient charge

Comfort and handling

  • L2X design: inline configuration for hard-to-reach areas
  • Weight: 2.1 kg with battery
  • Dimensions with battery, without jaw: 322 x 81 x 121 mm
  • Length: approximately 33 cm with jaw
  • Grip: non-slip Soft Touch® handle
  • Head: 360° rotation
  • Lighting: circular LED ring illuminating the work area through 360°
  • Control: single button for start-up and pressing
  • Battery saving: automatic machine shut-off

VIR-APP connectivity

VIR-APP provides access to the number of press cycles completed and remaining before the next maintenance. It can also be used to customise light intensity and standby time, create jobsite reports and check compatibility between fitting systems and VIRAX jaws or inserts.

L2X press fitting capacities

  • Copper: Ø12-28 mm / Ø1/4"-7/8"
  • Stainless steel: Ø12-28 mm
  • PER / PEX: Ø12-32 mm with inserts, up to 40 mm with TH-U mini jaws
  • Multilayer: Ø12-32 mm with inserts, up to 40 mm with TH-U mini jaws
  • Electro-galvanised / carbon steel: Ø12-28 mm

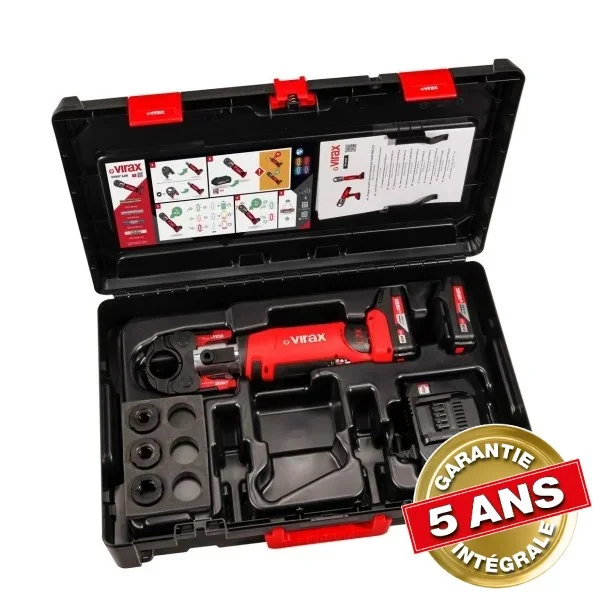

Reference 253586 contents

  • 1 VIRAX VIPER® L2X press fitting machine
  • 1 master jaw
  • R-profile inserts: 1/4", 3/8", 1/2" and 5/8"
  • 2 Lithium-Ion 18 V - 2.0 Ah batteries
  • 1 fast charger
  • 1 Virabox case
