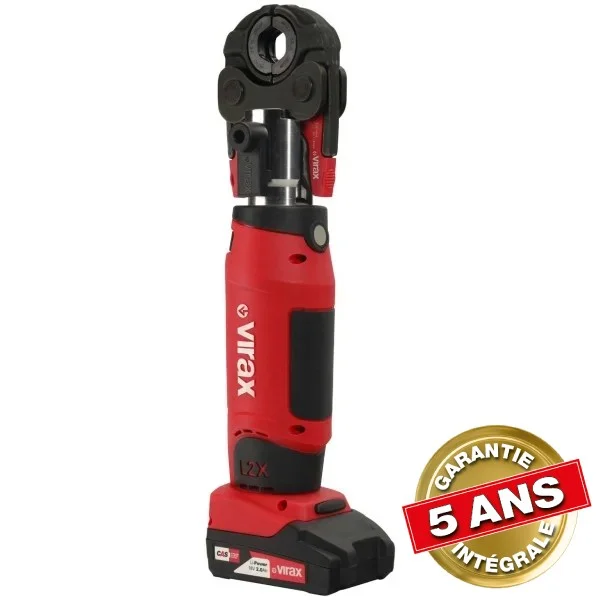

VIRAX VIPER® L2X 253582 press fitting machine - V profile

The VIRAX VIPER® L2X ref. 253582 is an 18 V electromechanical press fitting machine delivering a maximum force of 20 kN. This configuration includes a master jaw and V-profile inserts in Ø12, 14, 16, 18 and 22 mm, together with 2 batteries.

Weighing just 1.7 kg without battery or jaw, the L2X combines low weight with compact dimensions for easier handling. The jaw rotates through 360°, allowing its orientation to be adapted to the work area.

Controlled press fitting

The LED ring indicates the status of the press cycle while providing 360° illumination of the work area. Bluetooth connectivity with the VIR-APP also provides access to information including the number of press cycles completed and the number remaining before the next maintenance.

VIRAX L2X specifications

• Reference: 253582
• Model: VIPER® L2X
• Power supply: 18 V DC battery
• Power input: 400 W
• Maximum force: 20 kN
• Jaw rotation: 360°
• Weight without battery or jaw: 1.7 kg
• Weight with battery, without jaw: 2.1 kg
• Dimensions with battery, without jaw: 322 x 121 x 81 mm
• Connectivity: Bluetooth with VIR-APP

L2X press fitting capacities

• PER / PEX pipe: Ø12-Ø32/40 mm
• Multilayer pipe: Ø12-Ø32/40 mm
• Stainless or galvanised steel pipe: Ø12-Ø28 mm
• Copper pipe: Ø12-Ø28 mm

Reference 253582 configuration

• Machine: VIRAX VIPER® L2X
• Equipment: master jaw
• Insert profile: V
• Diameters: Ø12, 14, 16, 18 and 22 mm
• Batteries: 2 batteries

The 18 V CAS (Cordless Alliance System) used by the range is compatible with more than 400 tools from CAS partner manufacturers.
