L2X pince mere + TH 16-20-26 +2batt - 253577 - VIRAX

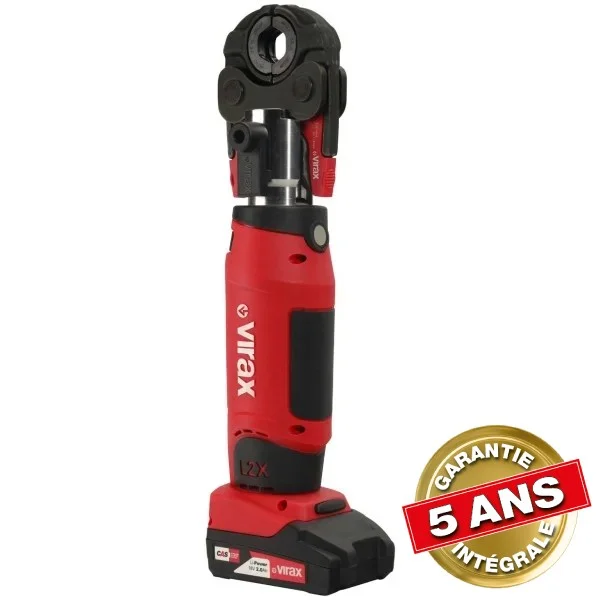

VIRAX Viper L2X TH 16-20-26 press tool - 253577

The VIRAX Viper L2X ref. 253577 is an 18 V electromechanical press fitting tool designed for pressing fittings onto pipework. This version includes a main jaw, TH profile inserts in 16, 20 and 26 mm and 2 batteries.

The L2X delivers a maximum pressing force of 20 kN. Its 360° rotating head makes it easier to position the tool around the fitting, while the LED ring indicates the status of the pressing cycle and illuminates the work area.

VIRAX L2X 253577 specifications

• Reference: 253577
• Model: Viper L2X
• Power supply: 18 V DC - 2.0 Ah Li-ion - 36 Wh battery
• Power input: 400 W
• Maximum pressing force: 20 kN
• Jaw rotation: 360°
• Weight without battery or jaw: 1.7 kg
• Weight with battery, without jaw: 2.1 kg
• Dimensions with battery, without jaw: 322 x 121 x 81 mm

253577 kit contents

• 1 VIRAX Viper L2X press tool
• 1 main jaw
• TH profile insert Ø 16 mm
• TH profile insert Ø 20 mm
• TH profile insert Ø 26 mm
• 2 x 18 V batteries

LED pressing cycle control

The LED ring assists the user throughout the pressing cycle. A green light confirms that the cycle has been completed correctly, while the white light illuminates the work area.

VIR-APP connectivity

The press tool can be connected to a smartphone or tablet via Bluetooth. VIR-APP can be used to view the number of pressing cycles completed, monitor maintenance and customise selected machine settings.
