Viper i26 + inserts RF-P 12-16-20 - 252912 - VIRAX

Viper® I26+ with RF-P Ø12-16-20 mm inserts - VIRAX 252912

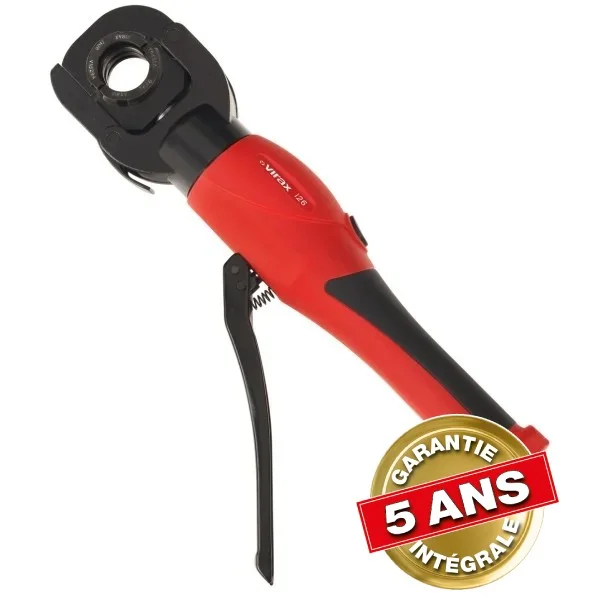

The VIRAX Viper® I26+ 252912 is a manual hydraulic press fitting tool designed for pressing without an electrical power supply. This version is equipped with RF-P Ø12, 16 and 20 mm inserts.

A compact and easy-to-handle manual press tool

• Manual hydraulic operation
• 180° rotating head
• Travel: 12.5 mm
• Dimensions: 366 x 63 x 88 mm
• Weight without insert: 2.5 kg
• End-of-pressing indicator with an audible «click» when maximum pressure force is reached

RF-P inserts included

• RF-P profile Ø12 mm
• RF-P profile Ø16 mm
• RF-P profile Ø20 mm

Viper® I26+ capacities

• Multilayer pipes: Ø12 to 26 mm
• PER, PEX and PB: Ø12 to 25 mm
• Copper: Ø12, 14 and 16 mm

The Viper® I26+ features a mechanical coding system preventing the use of inserts over 26 mm in diameter depending on the profile. VIRAX specifies that only VIRAX inserts should be used and that the insert profile must match the fitting and pipe being pressed.
