VIRAX 251774 MINISTEM® compact bender - 18 V

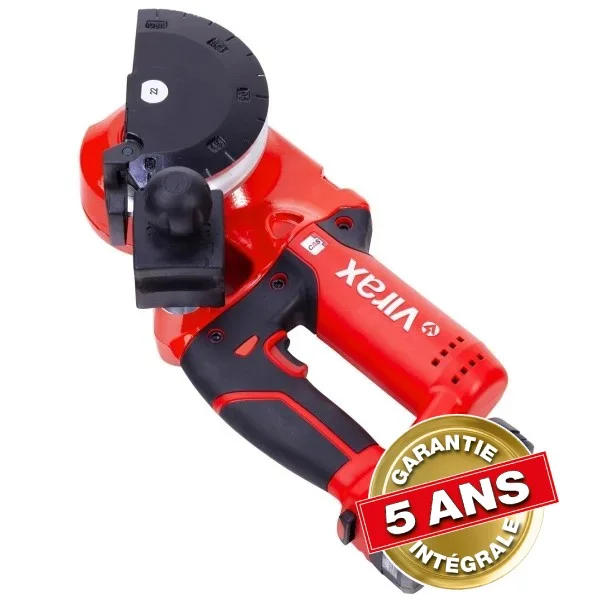

Designed for small installations, the VIRAX MINISTEM® ref. 251774 is a compact 18 V power bender designed to bend tubes through angles of up to 180°. This version is configured for 14, 16, 18 and 22 mm diameters.

Its compact design and low weight make everyday handling and transport easier. The machine weighs 5 kg without the battery and measures 372 x 194 x 111 mm. With a battery, Ø16 mm former and counter-former, VIRAX specifies a weight of 5.9 kg.

Bending capacities

• EN 1057 hard and annealed copper tube, 1 mm wall thickness: Ø10-22 mm
• EN 12735-1 copper tube for refrigeration and air conditioning: Ø3/8-7/8"
• Stainless steel tube up to 1.2 mm wall thickness and electro-galvanised steel: Ø10-18 mm
• Multilayer tube: Ø14-26 mm
• Bending angle: 0°-180°

18 V CAS battery and runtime

The bender operates with an 18 V - 2 Ah CAS battery. VIRAX states a runtime of up to 125 bends in Ø18 mm copper tube with a single battery. The commercial documentation states that the MINISTEM® is supplied with one 2 Ah battery.

Technical specifications

• Reference: 251774
• Model: MINISTEM®
• Voltage: 18 V
• Recommended battery: ≥ 2.0 Ah
• Diameters for version 251774: 14, 16, 18 and 22 mm
• Dimensions without battery: 372 x 194 x 111 mm
• Weight without battery: 5.00 kg
• Weight with battery, Ø16 mm former and counter-former: 5.9 kg
• Bending angle: 0°-180°
