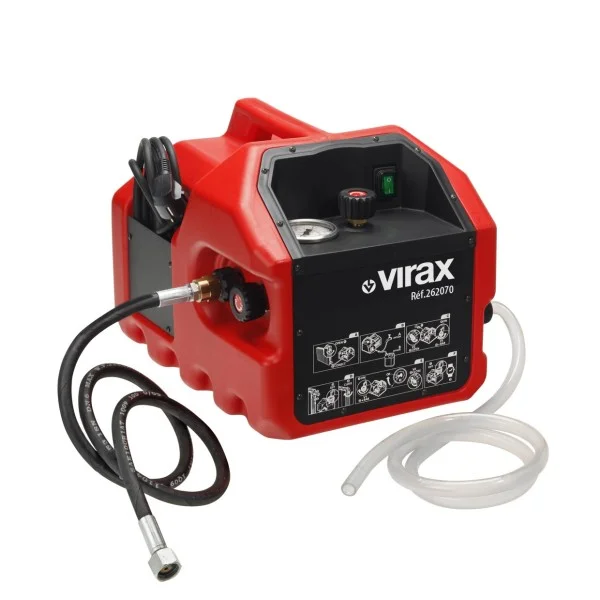

VIRAX 262070 electric test pump - 40 bar

The VIRAX electric test pump ref. 262070 is designed for leak testing pipes and tanks at pressures up to 40 bar. Its maximum flow rate of 6 L/min enables installations to be pressurised quickly.

Its self-priming operation up to 1 m allows the pump to draw from an external tank when no direct water supply is available. It can also be connected directly to a water supply with a minimum inlet pressure of 1 bar.

Precise pressure control

• Maximum pressure: 40 bar
• Rated flow: up to 6 L/min
• Glycerine pressure gauge: compensates for pressure shocks and vibrations while facilitating reading
• Gauge scales: bar, psi and MPa
• Pressure adjustment: directly accessible on the pump

Designed for convenient operation

• Self-priming: up to 1 m
• Housing: impact-resistant ABS
• Transport: integrated carrying handle
• Operation: instructions directly readable on the product
• Supplied connection: 1/2"
• High-pressure hose: 1.20 m
• Water inlet hose: 1.30 m

Technical specifications

• Power supply: 220-240 V, 50/60 Hz, single-phase
• Rated motor power: 1.3 kW
• Rated current: 6 A
• Protection class: IP32
• Maximum pressure: 40 bar
• Rated flow: max. 6 L/min
• Net weight: 17 kg
• Dimensions: 375 x 290 x 300 mm
• Permitted liquids: clean fresh water, glycol, Tyfocor, max. temperature 40 °C
• High-pressure hose: 1/4" internal diameter, 1.20 m long
